系统用途：
本厂生产的洒水除尘系统，主要应用于煤矿、铁矿、钢厂、电厂、煤码头和矿石码头等部门
的料场、煤堆场、矿石堆场的洒水防尘、码头、道路冲洗、大型林场、草坪和果园的喷灌。

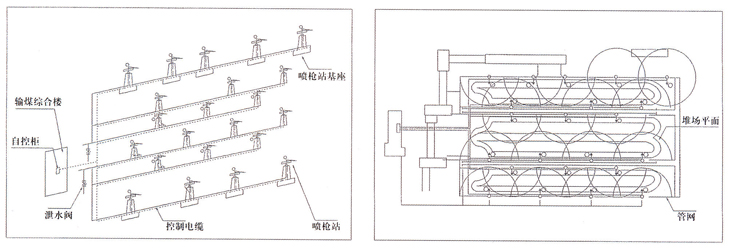

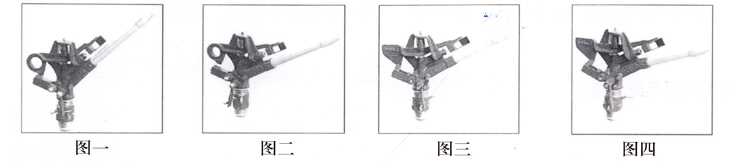

洒水系统包括：洒水喷枪、控制阀门、自动控制柜、管路、喷枪站。
自动控制说明：
GRP控制设备是结合自动喷酒设备的特点开 发研制的，采用PLC为控制核心。通过一台PLC控制可使多台喷枪循环顺序工作。每台喷洒时间和整体循环时间可任意设定。控制柜采用钢板或不锈钢板制造。防护等IP54。
喷嘴直径 (mm) |
工作压力 (MPa) |
喷嘴流量 (m3／h)(L／min) |
射程 (m) |
射高 (m) |
16xⅠ |
0.4 |
23.88398 |
33.O |
14.2 |
0.5 |
26.70445 |
35.5 |
15.4 |
0.55 |
27.96466 |
36.5 |
15.9 |
0.6 |
29.22487 |
37.5 |
16.5 |
0.65 |
30.42507 |
38.8 |
17.2 |
0.7 |
31.56526 |
40 |
18.O |
18×Ⅱ |
0.5 |
32.46541 |
38.0 |
16.5 |
0.55 |
34.02567 |
39.2 |
17.1 |
0.6 |
35.52592 |
40.5 |
17.8 |
0.65 |
36.96616 |
42.0 |
l8.5 |
0.7 |
38.40640 |
42.8 |
19.3 |
O.8 |
40.98683 |
43.5 |
19.7 |
19×Ⅲ |
0.5 |
35.70595 |
38.6 |
16.8 |
0.55 |
37.44624 |
39.6 |
17.3 |
0.6 |
39.12652 |
41.4 |
18.2 |
0.65 |
40.68678 |
42.9 |
19.0 |
0.7 |
42.24704 |
43.7 |
20.0 |
0.8 |
45.12752 |
44.5 |
20.4 |
20×Ⅱ |
O.5 |
38.52642 |
39.0 |
17.O |
0.55 |
40．44674 |
40.0 |
17.4 |
O.6 |
42.24704 |
41.8 |
l8.5 |
O.65 |
43.92732 |
43.5 |
19.6 |
0.7 |
45.60760 |
44.6 |
20.5 |
O.8 |
48.72812 |
45.5 |
20.9 |
21×Ⅲ |
0.5 |
42.12702 |
39.5 |
17.2 |
0.55 |
44.16736 |
41.O |
17.9 |
0.6 |
46.14769 |
42.5 |
18.7 |
0.65 |
l8.88888 |
44.0 |
19.8 |
0.7 |
49.88838 |
45.5 |
20.9 |
0.8 |
53.77887 |
46.5 |
2l.5 |
喷嘴直径 (mm) |
工作压力 (MPa) |
喷嘴流量 (m³／h)(L／min) |
射程 (m) |
16XI |
O.4 |
23.88398 |
34.5 |
0.5 |
26.70445 |
36.5 |
O.55 |
27.96466 |
37.5 |
O.6 |
29.22487 |
38.5 |
0.65 |
30.42507 |
39.5 |
0.7 |
31.56526 |
41.5 |
18XⅡ |
0.5 |
32.4654l |
40.0 |
0.55 |
34.02567 |
41.5 |
0.6 |
35.52592 |
42.5 |
0.65 |
36.96616 |
43.5 |
0.7 |
38.40640 |
44.2 |
|
40.98683 |
45.0 |
19×Ⅲ |
O.5 |
35.70595 |
40.5 |
O.55 |
37.44624 |
41.5 |
O.6 |
3912652 |
43.2 |
0.65 |
40.68678 |
44.8 |
O.7 |
42.24704 |
45.5 |
O.8 |
4512752 |
46.2 |
20×Ⅱ |
0.5 |
38.52642 |
41.0 |
0.55 |
40.44674 |
42.0 |
0.6 |
42.24704 |
43.5 |
0.65 |
43.92732 |
45.5 |
0.7 |
45.60760 |
46.5 |
O.8 |
48.72812 |
47.0 |
21XⅢ |
O.5 |
42.12702 |
42.0 |
O.55 |
44.16736 |
43.5 |
0.6 |
46.14769 |
45.O |
O.65 |
18.88888 |
46.5 |
O.7 |
49.88838 |
48.O |
O.8 |
53.22887 |
49.2 |
10X1
10XI |
0.25 |
7.44124 |
20 |
O.3 |
8.16136 |
22 |
0.35 |
8.76146 |
24 |
0.4 |
9.36156 |
26 |
0.5 |
10.50175 |
28.5 |
O.25 |
10.26171 |
22 |
03 |
11.22187 |
24 |
0.35 |
12.12202 |
26 |
O.4 |
12.96216 |
28 |
O.5 |
14.52242 |
30.5 |
14XⅡ |
O.25 |
13.20220 |
26 |
O3 |
14.46241 |
28 |
O.35 |
15.56161 |
30 |
O.4 |
16.74279 |
32 |
O.5 |
18.72312 |
34 |
16XⅡ |
0.25 |
16.62277 |
28 |
0.3 |
18.24304 |
30 |
O.35 |
19.68328 |
32 |
0.4 |
21.06351 |
34 |
O.5 |
23.52392 |
36.5 |
10.5XⅠ |
0.35 |
10.6177 |
8.0 |
O.4 |
10.34l89 |
8.4 |
0.45 |
12.00200 |
8.8 |
0.5 |
1266211 |
9.2 |
0.55 |
13.32222 |
9.7 |
0.6 |
13.86231 |
10.2 |
13XⅡ |
0.35 |
14.52242 |
8.0 |
0.4 |
15.45258 |
8.5 |
0.45 |
16.44274 |
9.0 |
0.5 |
15.34289 |
9.5 |
0.55 |
18.18303 |
10.1 |
0.6 |
18.963l6 |
10.8 |
15XⅡ |
0.35 |
18.00300 |
8.2 |
0.4 |
19.26321 |
8.8 |
0.45 |
20.40340 |
9.4 |
0.5 |
21.54359 |
10 |
0.55 |
22.56376 |
10.7 |
0.6 |
23.58393 |
11.5 |
16.5XⅡ |
0.35 |
2l.06351 |
8.5 |
0.4 |
22.5375 |
9.1 |
0.45 |
23.88398 |
9.8 |
0.5 |
25.2420 |
10.5 |
0.55 |
26.4440 |
11.2 |
0.6 |
27.6460 |
12.0 |
